R Skid Loader

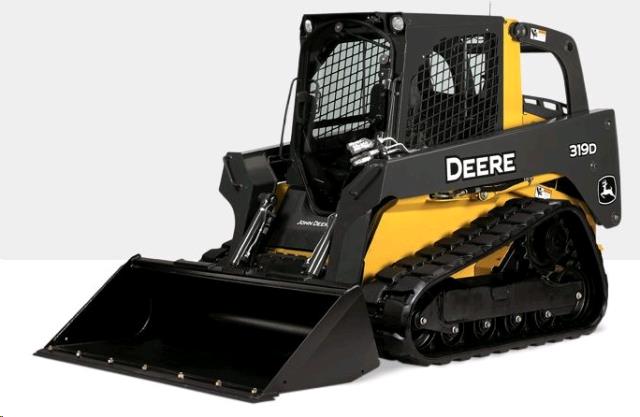

SKID LOADER, TRACK 66" BUCKET

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Rental Rate: $504.05

Quantity:

Additional Information

Fuel
This item uses a diesel engine. The equipment will come full of fuel and there is no upfront fuel charge. You are responsible for refilling this machine. If it is more convenient we can refill the machine at our location but we do charge more than most pumps.
Specs
Net Power - 45.6 kW (61 hp) @ 2,600 rpm
Tipping Load - 2756 kg (6,070 lb.)
Rated Operating Capacity - 965 kg (2,125 lb.)
Bucket Breakout Force - 2724 kg (6,000 lb.)
Length - No Bucket, mm (inches) 2630 (103)
Length - With Bucket, mm (inches) 3240 (127.6)
Width - No Bucket, mm (inches) 1650 (65.1)
Height - Top Of Cab, mm (inches) 1990 (78.5)
Ground Clearance, mm (inches) 210 (8.3)
Rear Departure Angle, 32.3
Track Gauge, mm (inches) 1330 (52.5)
Height to Hinge Pin, mm (inches) 3070 (121)
Dump Angle, 42
Dump Height - Maximum, mm (inches) 2430 (95.6)
Rollback - Ground Level, 30
Fuel Tank, ltr (gallons (US)) 71 (19)
Rated Operating Capacity, kg (lbs) 965 (2125)
Tipping Load, kg (lbs) 2756 (6070)
Ground Bearing Pressure, kPa (PSI) 38 (5.5)
Speed - Maximum, kph (mph) 11.3 (7)
Breakout - Lift, kN (lbf) 22.2 (5000)
Breakout - Bucket, kN (lbf) 26.6 (6000)
Hydraulic Power, kW (hp) 23.159 (31)
Pump Flow, lt/min (gallons (US) / min) 59 (16)
System Pressure, bar (PSI) 237.87 (3450)
Operating Weight, kg (lbs) 3721 (8195)
Not an enclosed cab
Transportation
A trailer is recommended to haul this equipment. If you do not own a trailer we have them available to rent. When renting a trailer to haul a piece of REQ machinery you receive 20% off the trailer.
