R Manlifts

LIFT, TRAILER LIFT 45' ARTICULATING

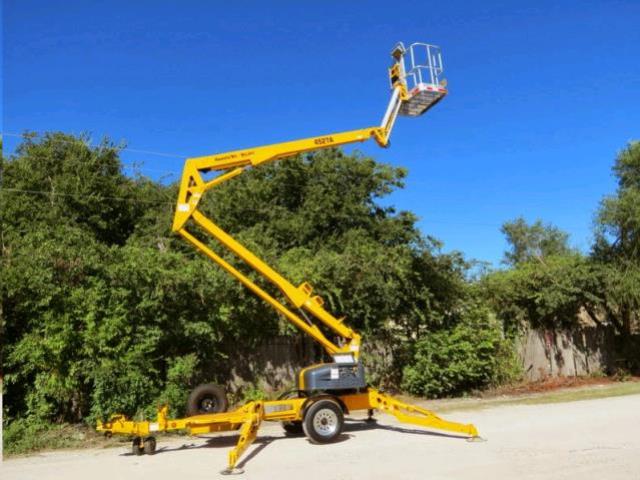

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Rental Rate: $402.06

Quantity:

Additional Information

Specs
Working height 51 ft
Platform height 45 ft
Horizontal outreach (from centerline) 27 ft
Horizontal outreach (from edge of footpad) 21 ft
Up and over height 20 ft 9 in
Lift capacity 500 lbs
Length - stowed 20 ft 8 in
Width stowed 5 ft 6 in
Height stowed 6 ft 8 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350 non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150 (+70 / -80)
Tow speed rating 65 mph
Leveling capability 12.5
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 290 lbs
Weight (no options) 4200 lbs
Widest Point 13 ft 9 in
Widest Point 13 ft 6 in
Transport
This is a trailer mounted item. The hitch uses a 2" ball and has a 4-way flat lighting connection. Maximum towing speed 50 MPH.

Also check the following item(s) related to the above:

HITCH BALL 2", BAR ,PIN

* Please note that many items have variable labor rates depending on the scope of your event. Our sales team will calculate these rates with your quote request.

* Prices are subject to change.

* Please call us for any questions on our lift trailer lift 45 foot articulating rentals in Colonial Heights VA, serving Richmond, Charlottesville, Charles City Virginia, and surrounding communities.
