R Manlifts

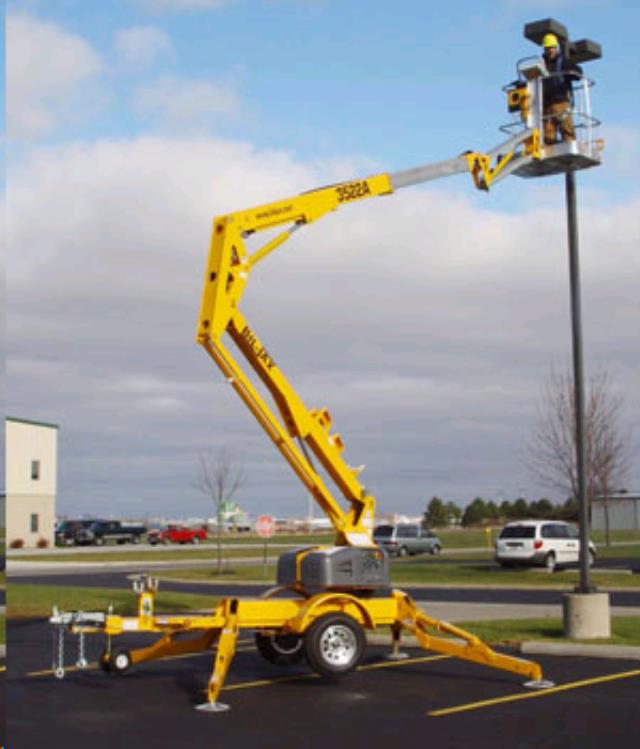

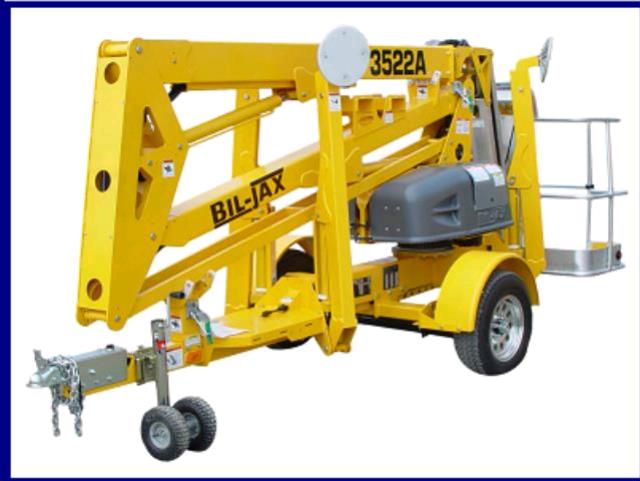

LIFT, TRAILER LIFT 35' ARTICULATING

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Rental Rate: $354.62

Quantity:

Additional Information

Specs
Working height 41 ft 9 in
Platform height 35 ft 9 in
Horizontal outreach (from centerline) 22 ft 6 in
Horizontal outreach (from edge of footpad) 17 ft 5 in
Up and over height 19 ft
Lift capacity 500 lbs
Length - stowed 16 ft 3 in
Width stowed 5 ft 6 in
Height stowed 6 ft 8 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350 non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150 (+70 / -80)
Tow speed rating 65 mph
Leveling capability 12.5
Tire size ST 225/75 D15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 245 lbs
Weight (no options) 3400 lbs
Widest Point 11 ft 1 in
Transport
This is a trailer mounted item. The hitch uses a 2" ball and has a 4-way flat lighting connection. Maximum towing speed 50 MPH.

* Please note that many items have variable labor rates depending on the scope of your event. Our sales team will calculate these rates with your quote request.

* Prices are subject to change.

* Please call us for any questions on our lift trailer lift 35 foot articulating rentals in Colonial Heights VA, serving Richmond, Charlottesville, Charles City Virginia, and surrounding communities.
