R Manlifts

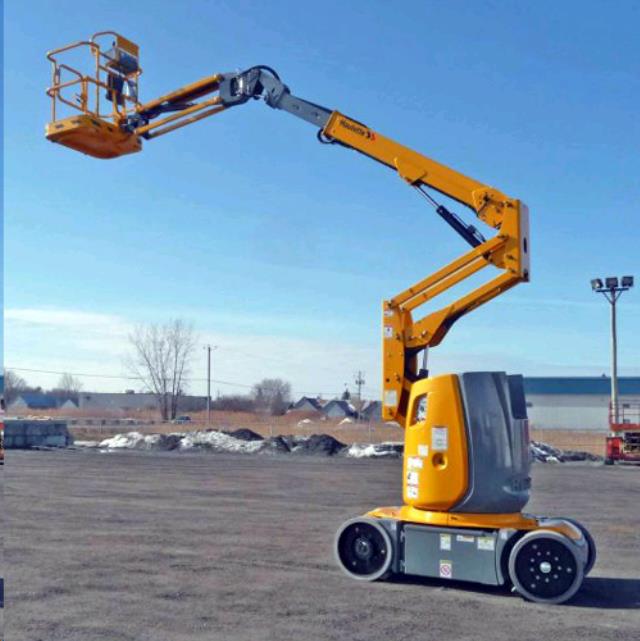

LIFT, 32' ARTICULATING ELECTRIC NARROW

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Rental Rate: $515.33

Quantity:

Additional Information

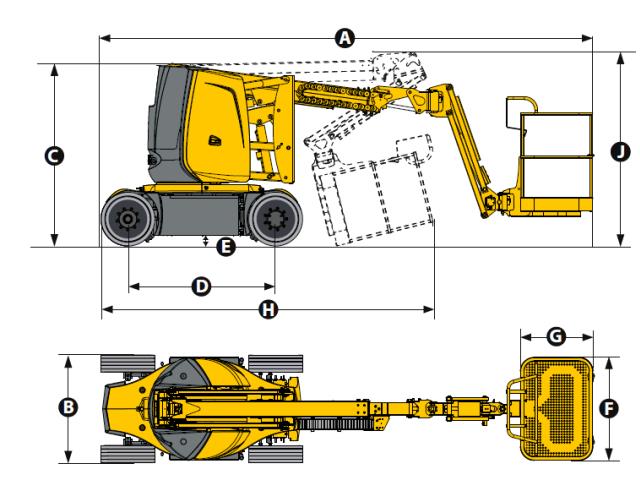

Specs
Working height 37 ft 9 in
Platform height 31 ft 9 in
Horizontal outreach 24 ft 1 in
Up and over clearance 15 ft 7 in
Lift capacity 500 Ibs
Platform size 3 ft 9 in x 2 ft 7 in
Length 18 ft 6 in
Width 3 ft 11 in
Height - stowed 6 ft 6 in
Vertical jib rotation 132.2 (+63.5/-68.7)
Platform rotation 180 (-90/+90)
Turntable rotation 355
Wheelbase 5 ft 5 in
Ground clearance 5 in
Tilt alarm 3
Drive speed 0.4 - 3.7 mph
Gradeability 25 %
Turning radius - outside 12 ft 0 in
Tires 23.5x7.5
Batteries 48V - 320 Ah (C5)
Weight 15,678 Ibs
Horizontal jib rotation 180 (-90/+90)
Transport length 13 ft 9 in
Transport height 8 ft 6 in
Tailswing 0 in
Hydraulic tank capacity 4 gal

* Please note that many items have variable labor rates depending on the scope of your event. Our sales team will calculate these rates with your quote request.

* Prices are subject to change.

* Please call us for any questions on our lift 32 foot articulating electric narrow rentals in Colonial Heights VA, serving Richmond, Charlottesville, Charles City Virginia, and surrounding communities.
